MTFDDAV960TDS-1AW1ZABYYStorage

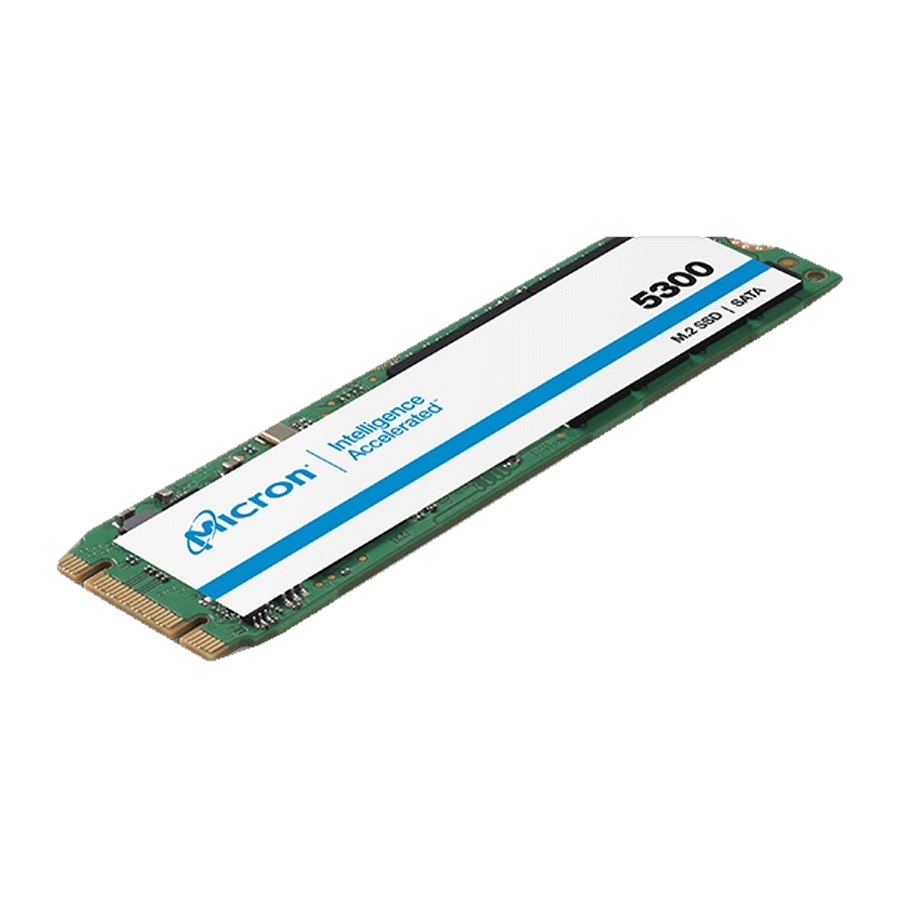

Micron 5300 PRO 960GB SATA 6Gb/s M.2 2280 Data Center SSD
Micron 5300 PRO data center SATA SSD, 960GB in an M.2 2280 form factor on a 6 Gb/s SATA interface. Sequential read/write up to 540/520 MB/s and 4KB random read/write up to 95,000/35,000 IOPS, built on Micron 96-layer 3D TLC NAND with end-to-end data protection and power loss protection. Rated 2,628TB TBW (1.5 DWPD over 5 years) with a 3.0 million hour MTTF and always-on AES 256-bit encryption engine.
- Price
- available on request
- Interface
- SATA 6 Gb/s
- Protocol
- ATA8-ACS4
- Form Factor
- M.2 2280
- NAND Flash
- 96-layer 3D TLC
- Controller
- Single-chip (4-ch)
- Sector Size
- 512-byte
- Queue Depth
- 32 (NCQ)
- Capacity
- 960GB
- Application
- Read-Intensive
- User Capacity
- 960.2GB
- Total LBAs
- 1.875 billion
- Dimensions
- 80x22x3.8mm
- Weight
- <10g
- Sequential Read
- 540 MB/s
- Sequential Write
- 520 MB/s
- Random Read (4KB)
- 95K IOPS
- Random Write (4KB)
- 35K IOPS
- Rand 70/30 Mix
- 55K IOPS
- RD Lat 99.9%
- 175µs
- WR Lat 99.9%
- 100µs
- RD Lat 99.999%
- 500µs
- WR Lat 99.999%
- 600µs
- TBW
- 2,628TB
- Endurance (DWPD)
- 1.5
- MTTF
- 3.0M hours
- UBER
- <1 in 10^17 bits
- Wear Leveling
- Static + dynamic
- Data Protection
- End-to-end
- Idle Power
- 1.5W avg
- Seq Read Power
- 2.8W
- Seq Write Power
- 3.4W
- Voltage
- 3.14-3.46V
- Power Disable
- Supported
- Operating Temp
- 0 to 70°C
- Non-Op Temp
- -40 to 85°C
- Temp Gradient
- 20°C/hr max
- Humidity
- 5-95% non-cond.
- Non-Op Shock
- 1500G/0.5ms
- Non-Op Vibration
- 5-800Hz 3.13Grms
- Encryption
- AES 256-bit HW
- SED / TCG
- Not enabled (Z)
- ATA Security
- Supported
- Sanitize
- Block/Overwrite/Crypto
- Power Loss Prot.
- Enhanced (cap)
- Data Path Protect
- User + Meta data
- Firmware Sec.
- Digitally signed
- TRIM
- Supported
