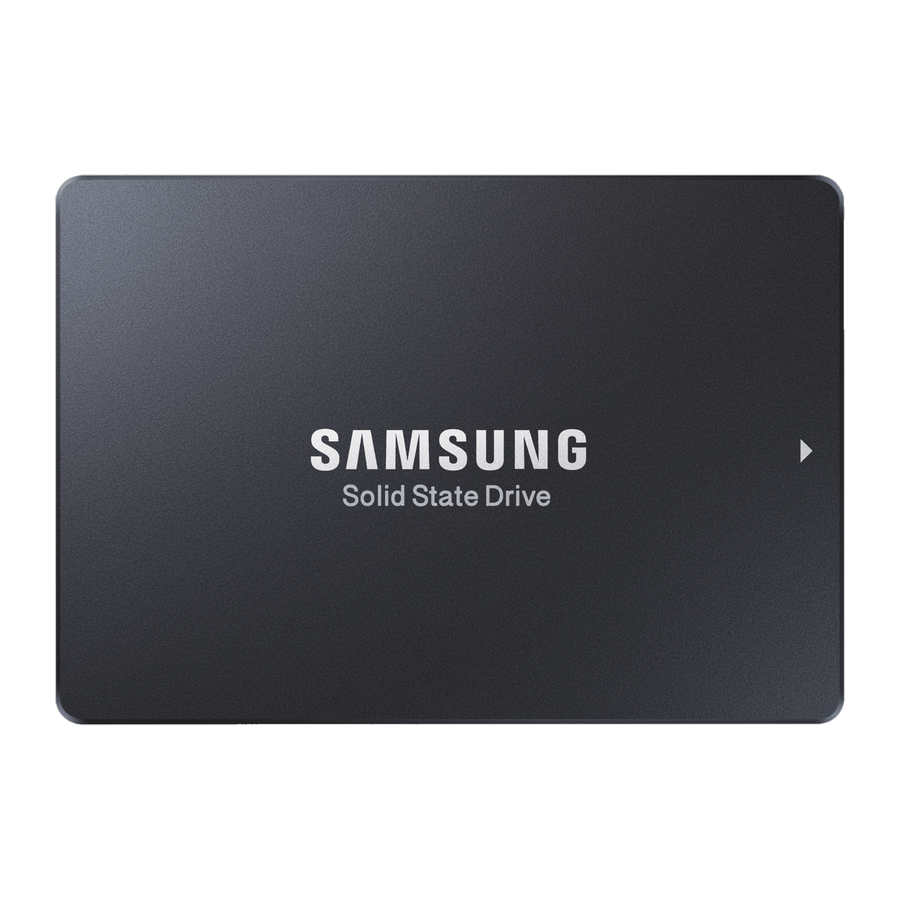

Samsung PM883 960GB SATA 6Gb/s 2.5" Data Center SSD
MZ7LH960HAJR-00005Available to order
Samsung PM883 data center SATA SSD, 960GB in a 2.5-inch 7mm form factor on a 6 Gb/s SATA interface. Sequential read/write up to 550/520 MB/s and 4KB random read/write up to 98,000/25,000 IOPS, built on Samsung V-NAND TLC with power loss protection and hardware AES 256-bit encryption. Rated 1,366TB TBW (1.3 DWPD over 3 years) with a 2.0 million hour MTBF.
- Interface
- SATA 6 Gb/s
- Form Factor
- 2.5" 7mm
- NAND Flash
- V-NAND TLC
- Controller
- Maru
- Dimensions
- 100.2×69.9×6.8mm
- Weight
- 58g
- Application
- Web/App/Cache Server
- Capacity
- 960GB
- Capacity Basis
- 1GB=1,000,000,000B
- Addr. Sectors
- 1,875,385,008
- Sector Size
- 512B
- Sequential Read
- 550 MB/s
- Sequential Write
- 520 MB/s
- Random Read (4KB)
- 98,000 IOPS
- Random Write (4KB)
- 25,000 IOPS
- Queue Depth
- QD32
- Read Latency
- 120us
- Write Latency
- 40us
- Read Consistency
- 99%
- Write Consistency
- 90%
- TBW
- 1,366TB
- Endurance
- 1.3 DWPD (3yr)
- MTBF
- 2.0M hours
- UBER
- <1 in 10^17 bits
- Data Retention
- 3 months
- Idle (DIPM off)
- 1.3W
- Active Read
- 2.3W avg
- Active Write
- 3.1W avg
- Supply Voltage
- 5.0V ±5%
- Inrush Current
- 1.2A <1s
- Operating Temp
- 0 to 70°C
- Non-Op Temp
- -40 to 85°C
- Temp Gradient
- 30°C/hr
- Humidity
- 5-95% non-cond.
- Shock (non-op)
- 1500G 0.5ms
- Vibration
- 20G 20-2000Hz
- Encryption
- AES 256-bit
- SED
- Supported
- Power Loss Protect
- Supported
- Data Protection
- End-to-end
- TRIM
- Supported
