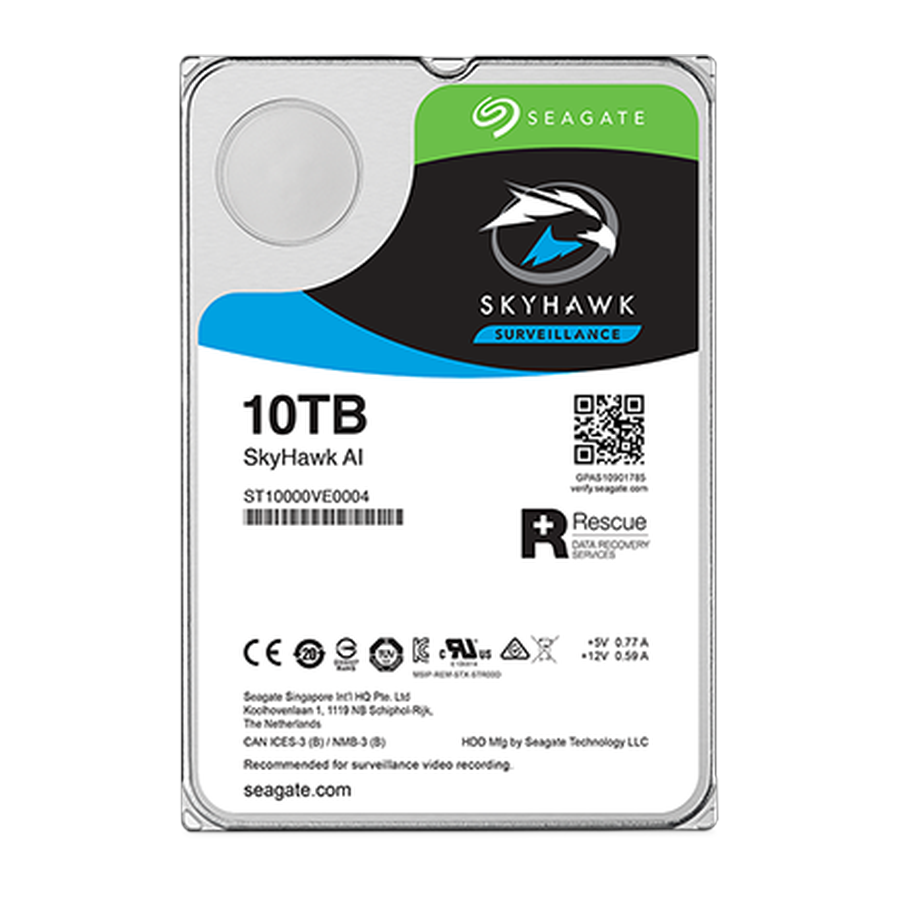

Seagate SkyHawk AI 10TB SATA 6Gb/s 3.5" Surveillance HDD
ST10000VE001Available to order
Seagate SkyHawk AI 10TB surveillance HDD in a 3.5-inch form factor on a 6 Gb/s SATA interface, built with CMR recording, 10 heads, 5 disks, and a 256MB cache. Sustained transfer reaches 245 MB/s at 7,200 RPM with 4.16ms average latency, rated for 64 HD camera streams plus 32 AI analytics channels across 16+ drive bays. Backed by ImagePerfect AI firmware and rotational vibration sensors, with a 550TB/year workload rating and a 2.0 million hour MTBF.
- Interface
- SATA 6 Gb/s
- Form Factor
- 3.5"
- Recording
- CMR
- Rotational Speed
- 7,200 RPM
- Cache
- 256MB
- Heads/Disks
- 10 / 5
- Drive Design
- Air
- Sector Size
- 512e (4K phys)
- Capacity
- 10TB
- Guaranteed Sectors
- 19.53 billion
- Recording Density
- 2499 kBPI
- Track Density
- 487 ktrk/in
- Areal Density
- 1215 Gb/in2
- Interface Transfer
- 600 MB/s
- Max Transfer Rate
- 245 MB/s
- Average Latency
- 4.16 ms
- Power-On to Ready
- 23.0s typ
- Standby to Ready
- 23.0s typ
- Cameras Supported
- Up to 64
- Drive Bays
- 16+
- AI Channels
- Up to 32
- Workload Rate
- 550TB/year
- MTBF
- 2.0M hours
- AFR
- 0.44%
- UBER
- <1 in 10^15 bits
- Load/Unload
- 300,000 cyc
- RV Sensors
- Yes
- Startup Current
- 2.0A (12V)
- Operating Power
- 10.1W avg
- Idle Power
- 7.8W avg
- Standby Power
- 1.0W
- Sleep Power
- 1.0W
- Voltage 5V Tol.
- ±5%
- Voltage 12V Tol.
- ±10%
- Idle Sound Power
- 2.8 bels typ
- Idle Max
- 3.0 bels max
- Seek Sound Power
- 3.2 bels typ
- Seek Max
- 3.4 bels max
- Operating Temp
- 0 to 65°C
- Non-Op Temp
- -40 to 70°C
- Humidity Op
- 5-95% non-cond
- Humidity Non-Op
- 5-95% non-cond
- Altitude Op
- -304.8 to 3048m
- Shock Operating
- 70/40 Gs (r/w)
- Shock Non-Op
- 300 Gs
- Vibration (Lin)
- 1.04 Grms
- Vibration (Rot)
- 12.5 rad/s2
Drive
Capacity
Performance
Reliability
Power
Acoustics
Environment
