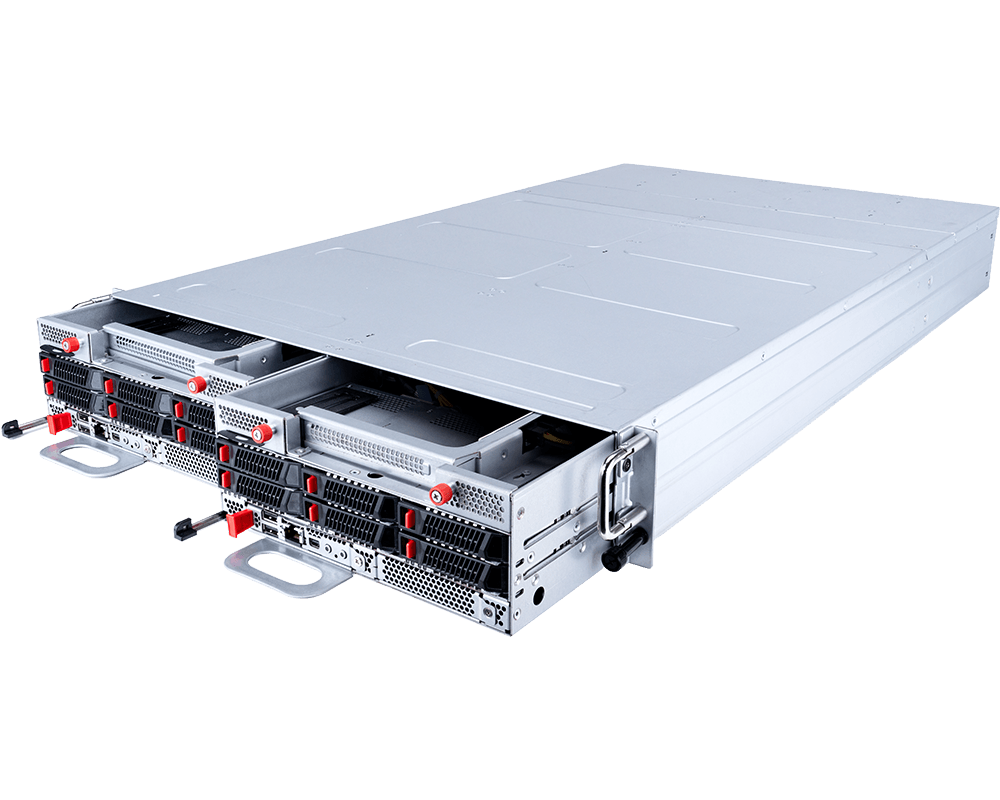

MSI CD270-S3061-X2 2U 2-Node Intel Xeon 6 Server
S3061D270RAU6-X2Available to order
EIA 19-inch 2U two-node Intel Xeon 6500/6700 series platform running DC 12V with CRPS 1+1 redundancy PSU, designed to deliver maximum CPU computing performance and PCIe Gen5 expansion capability based on DC-MHS architecture.
GPU Partner supplies the CD270-S3061-X2 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 16 memory slots; 2400W, CRPS 1+1, DC 12V power. Full specifications are listed below and in MSI's product portfolio.
- Form Factor
- 2U2N (EIA 19")
- Product Class
- Core Compute
- Architecture
- DC-MHS
- Nodes per Chassis
- 2 nodes
- CPU Support
- Intel Xeon 6500/6700
- Series
- 6700E / 6500P / 6700P
- Sockets per Node
- 1
- Max CPU TDP
- Up to 350W
- DIMM Slots
- 16x RDIMM
- Speed (1DPC)
- Up to 6400MT/s
- Speed (2DPC)
- Up to 5200MT/s
- Front Bays
- 6x 2.5" U.2
- Bay Interface
- PCIe 5.0 x4 NVMe
- M.2 Slots
- 2x 2280/22110
- M.2 Interface
- PCIe 5.0 x2 NVMe
- Single-Wide
- Up to 1x SW
- OCP Slot
- 1x OCP 3.0 PCIe 5.0
- TPM
- TPM 2.0 module
- Root of Trust
- ROT module
- Wattage
- 2400W
- Redundancy
- CRPS 1+1
- Input
- DC 12V
Platform
Processor (Per Node)
Memory (Per Node)
Storage — Front (Per Node)
Storage — Internal (Per Node)
Expansion Slots (Per Node)
Networking (Per Node)
Security (Optional)
Power Supply
Priceavailable on request
