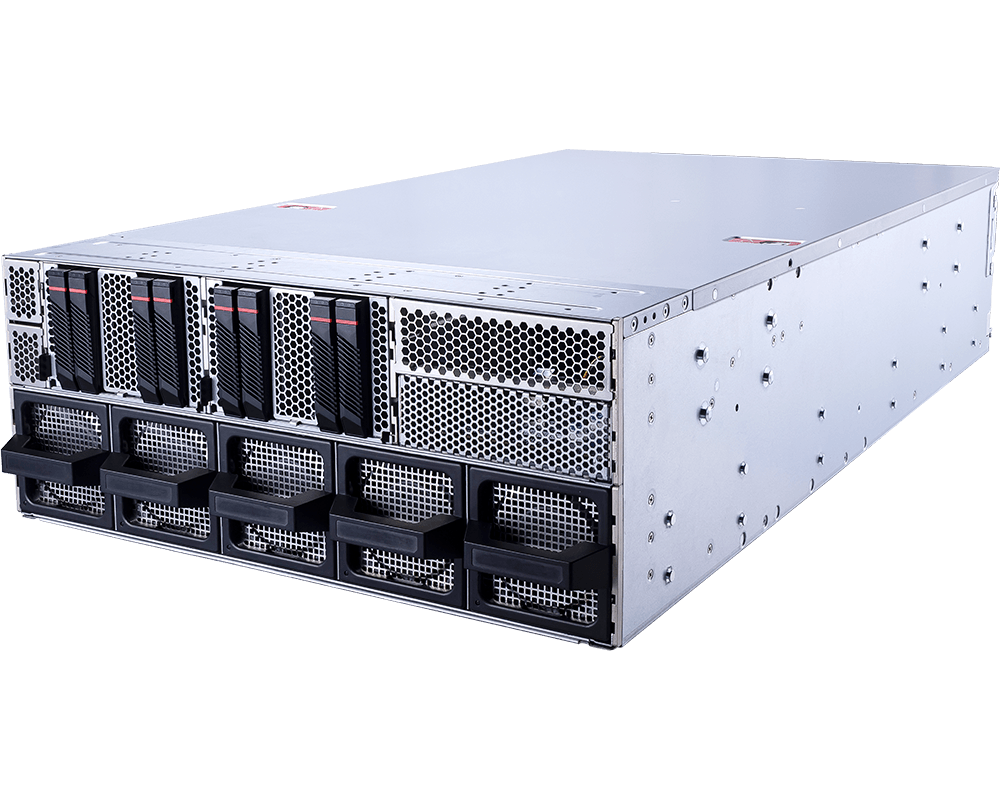

MSI CG481-S6053 NVIDIA MGX 4U GPU Server Platform
S6053G481RAU8Available to order
CG481-S6053 Series GPU Compute Server supporting dual AMD EPYC 9005 series processors, with onboard 400G QSFP ports using PCIe Gen6 switching, up to eight U.2 NVMe drive bays, and maximum memory capability based on NVIDIA MGX Architecture.
GPU Partner supplies the CG481-S6053 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 24 memory slots; 3200W power. Full specifications are listed below and in MSI's product portfolio.
MSI part numbers for this platform: S6053G481RAU8, S6053G481RAU8R. These differ mainly in drive-bay and RAID configuration; contact us to confirm the right SKU for your build.
- Form Factor
- 4U Rackmount
- Product Class
- GPU Server
- Architecture
- NVIDIA MGX
- CPU Support
- AMD EPYC 9005
- Sockets
- 2 (dual-socket)
- Max CPU TDP
- Up to 500W
- DIMM Slots
- 24x RDIMM
- Max Speed
- Up to 6400MT/s
- Front Bays
- 8x 2.5" U.2
- Bay Interface
- PCIe 5.0 x4 NVMe
- M.2 Slots
- 2x 2280/22110
- M.2 Interface
- PCIe 3.0 x2 NVMe
- Double-Wide
- Up to 8x 600W DW
- Single-Wide
- Or up to 9x SW
- Switching
- PCIe Gen6
- PCIe Cards Supported
- 8
- High-Speed
- 8x 400G QSFP
- Chipset
- NVIDIA ConnectX-8
- TPM
- On-board TPM 2.0
- Root of Trust
- ROT module (opt.)
- Wattage
- 3200W
Platform
Processor
Memory
Storage — Front Bays
Storage — Internal
Expansion Slots
Networking
Security (Optional)
Power Supply
Priceavailable on request
Get a quote
