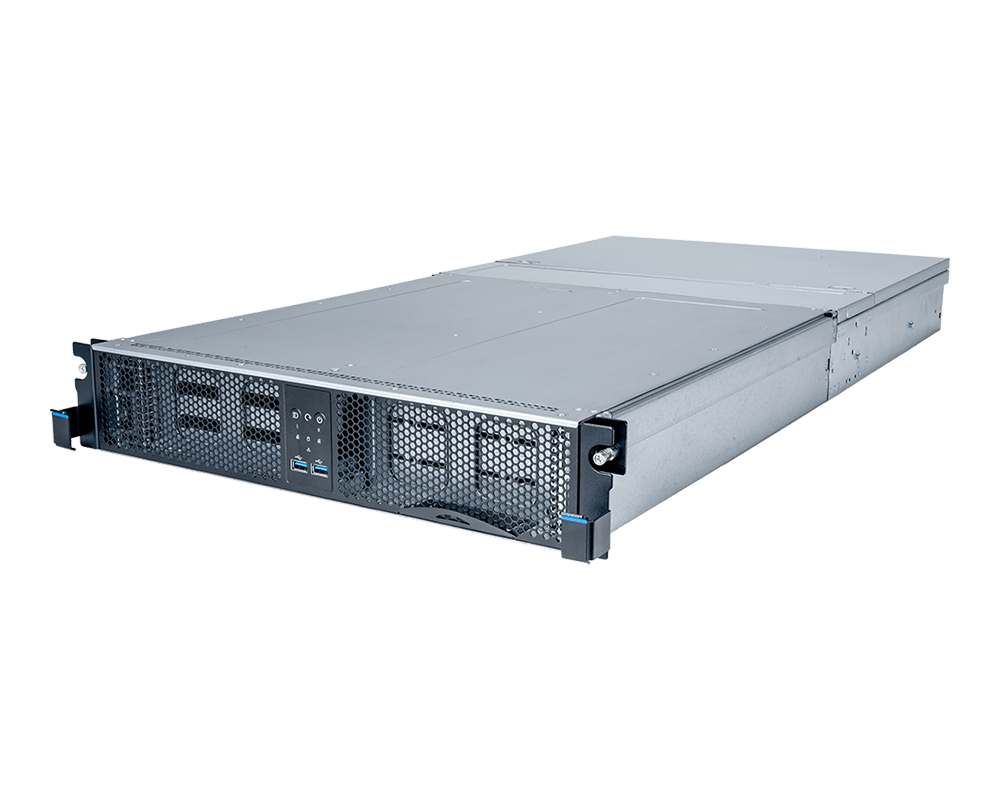

MSI CS280-S3065 2U Capacity Storage Server
S3065S280RAS24U2Available to order
2U single-socket Intel Xeon 6500/6700 series platform built for capacity-optimized storage environments with support for high-density SATA/SAS and PCIe Gen5 NVMe, enabling massive data throughput and efficient data handling.
GPU Partner supplies the CS280-S3065 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 8 memory slots; 1300W power. Full specifications are listed below and in MSI's product portfolio.
- Form Factor
- 2U Rackmount
- Product Class
- Storage
- CPU Support
- Intel Xeon 6500/6700
- Series
- 6700E / 6500P / 6700P
- Sockets
- 1 (single-socket)
- Max CPU TDP
- Up to 350W
- DIMM Slots
- 8x RDIMM
- Max Speed
- Up to 6400MT/s
- Front Bays
- 24x 3.5"/2.5"
- Bay Interface
- SATA 3.0 / SAS
- Rear Bays
- 2x 2.5" U.2
- Rear Interface
- PCIe 5.0 x4 NVMe
- M.2 Slots
- 2x 2280/22110
- M.2 Interface
- PCIe 5.0 x2 NVMe
- Single-Wide
- Up to 2x SW
- OCP Slot
- 1x OCP 3.0 PCIe 5.0
- 25GbE LAN
- 2x onboard
- GbE LAN
- 2x onboard
- TPM
- TPM 2.0 module
- Wattage
- 1300W
Platform
Processor
Memory
Storage — Front Bays
Storage — Rear Bays
Storage — Internal
Expansion Slots
Networking
Security (Optional)
Power Supply
Priceavailable on request
Get a quote
