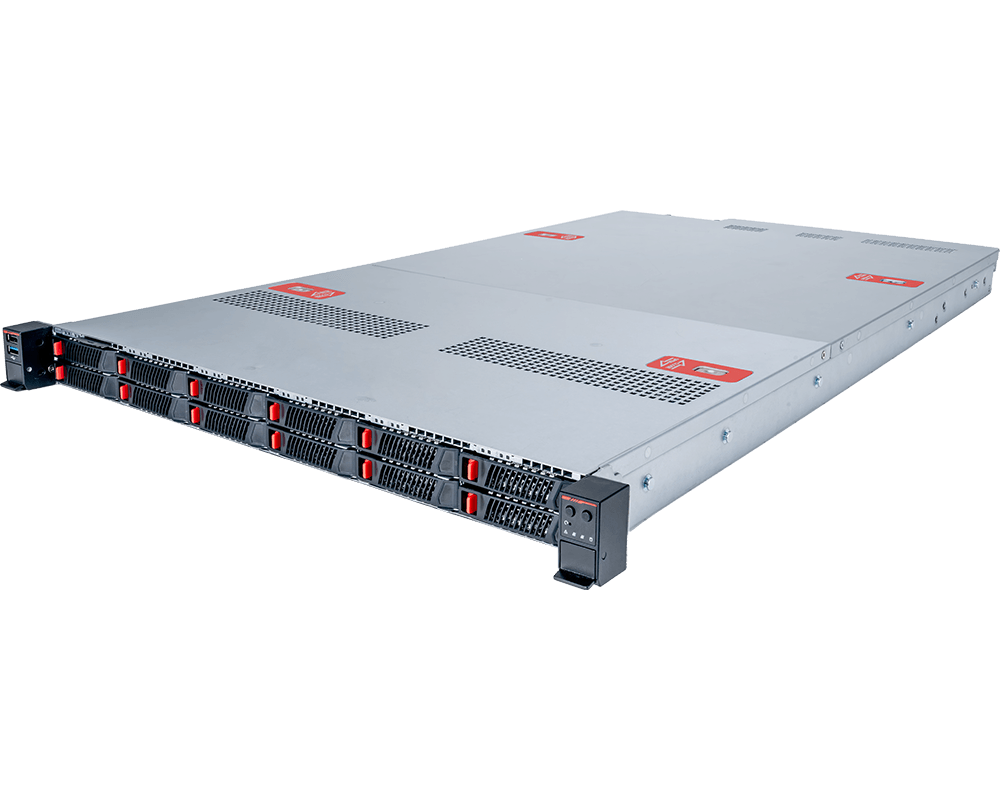

MSI CX171-S4056 1U Single-Socket AMD EPYC Server
S4056X171RAU12Available to order
1U single-socket AMD EPYC 9004/9005 series platform built for data-intensive storage environments, with all-NVMe flash and PCIe Gen5 support based on DC-MHS architecture.
GPU Partner supplies the CX171-S4056 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 24 memory slots; 1500W power. Full specifications are listed below and in MSI's product portfolio.
- Form Factor
- 1U Rackmount
- Product Class
- Enterprise
- Architecture
- DC-MHS
- CPU Support
- AMD EPYC 9004/9005
- Sockets
- 1 (single-socket)
- Max CPU TDP
- Up to 500W
- DIMM Slots
- 24x RDIMM
- Speed (1DPC)
- Up to 5200MT/s
- Speed (2DPC)
- Up to 4400MT/s
- Front Bays
- 12x 2.5" U.2
- Bay Interface
- PCIe 5.0 x4 NVMe
- M.2 Slots
- 2x 2280/22110
- M.2 Interface
- PCIe 5.0 x2 NVMe
- Single-Wide
- Up to 2x SW
- OCP Slots
- 2x OCP 3.0 PCIe 5.0
- TPM
- TPM 2.0 module
- Root of Trust
- ROT module
- Wattage
- 1500W
Platform
Processor
Memory
Storage — Front Bays
Storage — Internal
Expansion Slots
Networking
Security (Optional)
Power Supply
