S5062X270RAU24Systems

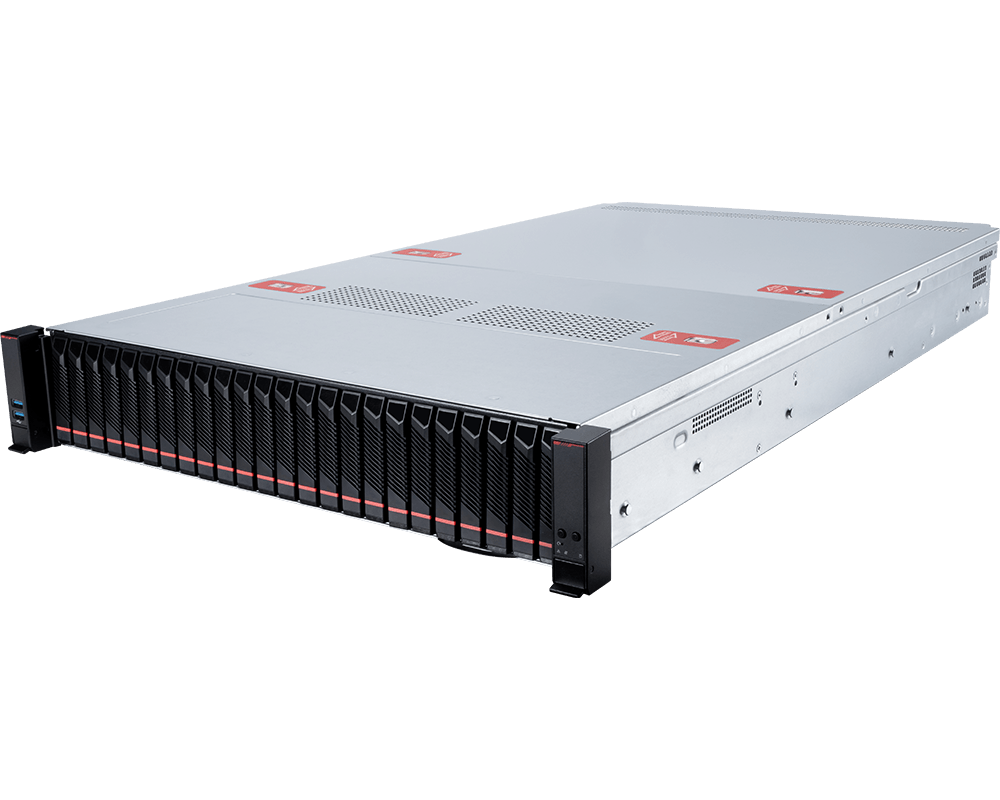

MSI CX270-S5062 2U Dual-Socket Intel Xeon 6 Server
2U dual-socket Intel Xeon 6500/6700 series platform built for data-intensive storage environments with all-NVMe flash, supporting PCIe Gen5 and double-width PCIe card expansions based on DC-MHS architecture.
GPU Partner supplies the CX270-S5062 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 32 memory slots; 2700W / 3200W power. Full specifications are listed below and in MSI's product portfolio.
MSI part numbers for this platform: S5062X270RAU24, S5062X270RAS12-HE, S5062X270RAU8-HE, S5062X270RAU8. These differ mainly in drive-bay and RAID configuration; contact us to confirm the right SKU for your build.
- Price
- available on request
- Form Factor
- 2U Rackmount
- Product Class
- Enterprise
- Architecture
- DC-MHS
- CPU Support
- Intel Xeon 6500/6700
- Series
- 6700E / 6500P / 6700P
- Sockets
- 2 (dual-socket)
- Max CPU TDP
- Up to 350W
- DIMM Slots
- 32x RDIMM
- Speed (1DPC)
- Up to 6400MT/s
- Speed (2DPC)
- Up to 5200MT/s
- Option 1
- 8x 2.5" U.2 NVMe
- Option 2
- 24x 2.5" U.2 NVMe
- Bay Interface
- PCIe 5.0 x4
- Option 3 — Bays
- 12x 3.5"/2.5"
- Option 3 — Interface
- SATA 3.0/SAS
- Option 3 — NVMe Bays
- 4 of 12 U.2 NVMe
- E1.S Bays
- 2x 9.5mm E1.S
- E1.S Interface
- PCIe 5.0 x4 NVMe
- M.2 Slots
- 2x 2280/22110
- M.2 Interface
- PCIe 5.0 x2 NVMe
- Double-Wide
- Up to 2x 400/600W
- Single-Wide
- Or up to 6x SW
- PCIe Cards Supported
- 2
- OCP Slot
- 1x OCP 3.0 PCIe 5.0
- TPM
- TPM 2.0 module
- Root of Trust
- ROT module
- Options
- 2700W / 3200W
