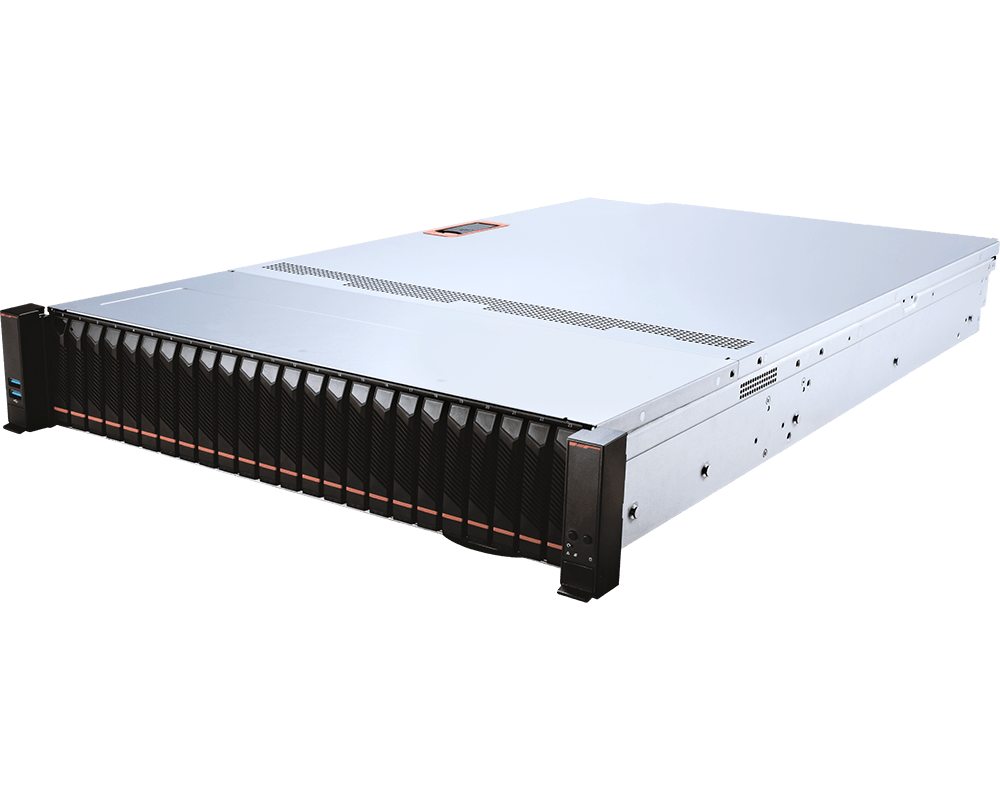

MSI CX271-S4056 2U Single-Socket AMD EPYC Server
S4056X271RAU8Available to order
2U single-socket AMD EPYC 9004/9005 series platform built for data-intensive storage environments with all-NVMe flash, supporting PCIe Gen5 and double-width PCIe card expansions based on DC-MHS architecture.
GPU Partner supplies the CX271-S4056 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 24 memory slots; 2000W / 2400W, 3200W power. Full specifications are listed below and in MSI's product portfolio.
MSI part numbers for this platform: S4056X271RAU8, S4056X271RAU24, S4056X271RAU8-HE. These differ mainly in drive-bay and RAID configuration; contact us to confirm the right SKU for your build.
- Form Factor
- 2U Rackmount
- Product Class
- Enterprise
- Architecture
- DC-MHS
- CPU Support
- AMD EPYC 9004/9005
- Sockets
- 1 (single-socket)
- Max CPU TDP
- Up to 500W
- DIMM Slots
- 24x RDIMM
- Speed (1DPC)
- Up to 5200MT/s
- Speed (2DPC)
- Up to 4400MT/s
- Option 1
- 8x 2.5" U.2 NVMe
- Option 2
- 24x 2.5" U.2 NVMe
- Bay Interface
- PCIe 5.0 x4
- M.2 Slots
- 2x 2280/22110
- M.2 Interface
- PCIe 3.0 x2 NVMe
- Double-Wide
- Up to 2x 400/600W
- Single-Wide
- Or up to 3x SW
- PCIe Cards Supported
- 2
- OCP Slots
- 2x OCP 3.0 PCIe 5.0
- TPM
- TPM 2.0 module
- Root of Trust
- ROT module
- Options
- 2000W / 2400W
- Max
- 3200W
Platform
Processor
Memory
Storage — Front Bays
Storage — Internal
Expansion Slots
Networking
Security (Optional)
Power Supply
