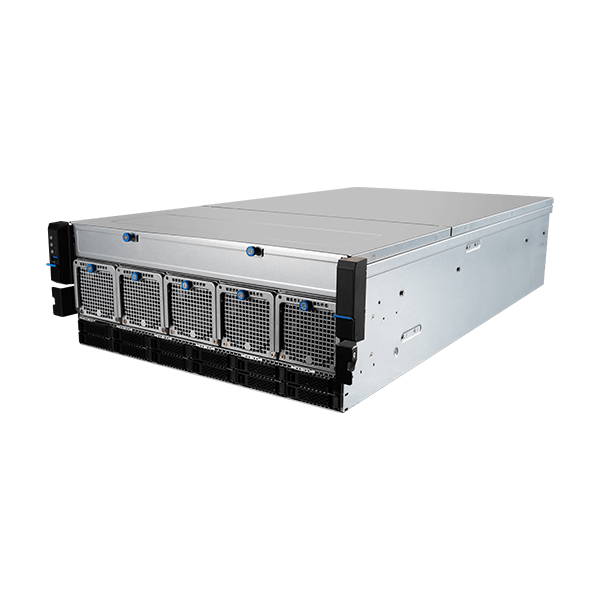

MSI G4101 4U Single-Socket AMD EPYC GPU Server
G4101-01Available to order
4U single-socket AMD EPYC 9004/9005 series platform with a closed-loop liquid or air cooling module for the CPU. Built for data-intensive storage environments with all-NVMe flash, supporting PCIe Gen5 and double-width PCIe card expansions.
GPU Partner supplies the G4101 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 12 memory slots; 3000W power. Full specifications are listed below and in MSI's product portfolio.
MSI part numbers for this platform: G4101-01, G4101-03, G4101-04, G4101-05. These differ mainly in drive-bay and RAID configuration; contact us to confirm the right SKU for your build.
- Form Factor
- 4U Rackmount
- Product Class
- Enterprise
- CPU Support
- AMD EPYC 9004/9005
- Sockets
- 1 (single-socket)
- Max CPU TDP
- Up to 500W
- CPU Cooling
- Closed-loop or air
- DIMM Slots
- 12x RDIMM
- Max Speed
- Up to 6400MT/s
- Front Bays
- 12x 2.5" U.2
- Bay Interface
- PCIe 5.0 x4 NVMe
- M.2 Slot 1
- 2280/22110 x4
- M.2 Slot 2
- 2280/22110 x2
- M.2 Interface
- PCIe 3.0 NVMe
- Double-Wide
- Up to 4x 350W DW
- Single-Wide
- Or up to 6x SW
- PCIe Cards Supported
- 4
- Onboard LAN
- Not included
- TPM
- TPM 2.0 module
- Wattage
- 3000W
Platform
Processor
Memory
Storage — Front Bays
Storage — Internal
Expansion Slots
Networking
Security (Optional)
Power Supply
Priceavailable on request
Get a quote
