S2205-01Systems

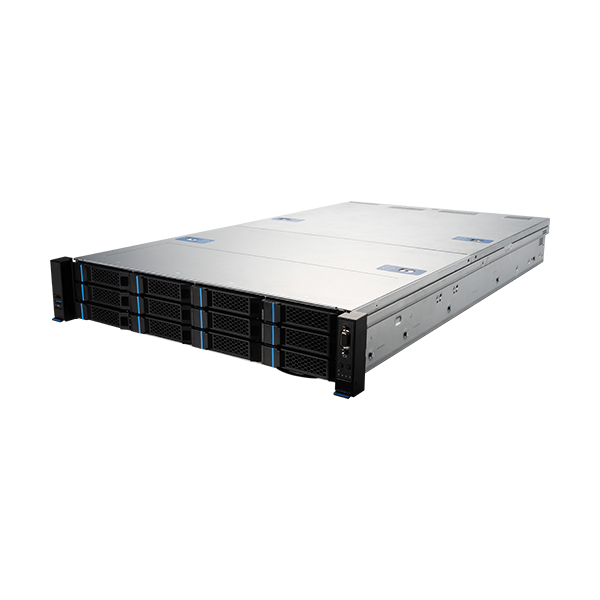

MSI S2205 2U Dual-Socket Intel Xeon Scalable Server
2U dual-socket 4th/5th Generation Intel Xeon Scalable platform built for data-intensive storage environments, integrating PCIe Gen4 NVMe, SATA, and SAS storage with support for double-wide PCIe card expansion.
GPU Partner supplies the S2205 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 32 memory slots; 1600W / 2000W power. Full specifications are listed below and in MSI's product portfolio.
- Price
- available on request
- Form Factor
- 2U Rackmount
- Product Class
- Enterprise
- CPU Support
- Intel Xeon Scalable
- Generation
- 4th / 5th Gen
- Sockets
- 2 (dual-socket)
- Max CPU TDP
- Up to 350W
- DIMM Slots
- 32x RDIMM
- Speed (1DPC)
- Up to 5600MT/s
- Speed (2DPC)
- Up to 4400MT/s
- Option 1 — Bays
- 12x 3.5"/2.5"
- Option 1 — Interface
- U.2 PCIe 4.0 NVMe
- Option 1 — Also
- SATA / SAS
- Option 2 — Bays
- 24x 2.5"
- Option 2 — Interface
- U.2 PCIe 4.0 NVMe
- Option 2 — SATA/SAS
- 8 of 24 bays
- Rear Bays
- 4x 2.5" SATA 3.0
- M.2 Slots
- 2x 2280/22110
- M.2 Interface
- PCIe 3.0 x2 NVMe
- Double-Wide
- Up to 3x 400W DW
- Single-Wide
- Or up to 7x SW
- PCIe Cards Supported
- 2
- OCP Slot
- 1x OCP 3.0 PCIe 4.0
- Onboard LAN
- 2x GbE
- TPM
- TPM 2.0 module
- Options
- 1600W / 2000W
