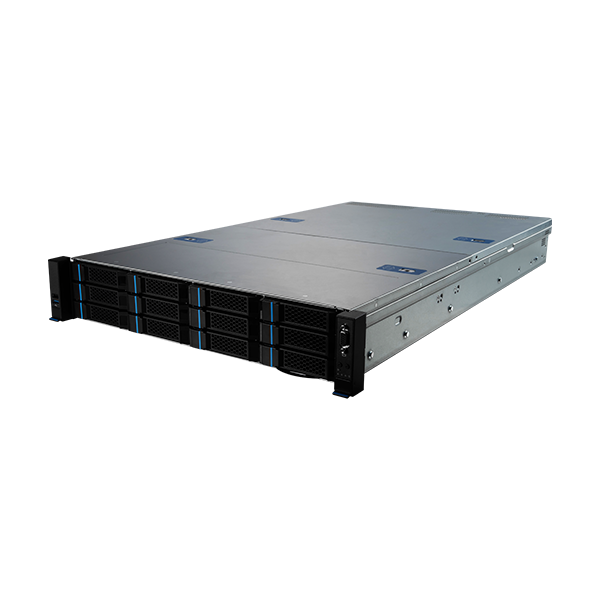

MSI S2206 2U Dual-Socket AMD EPYC Server
S2206-02Available to order
2U dual-socket AMD EPYC 9004/9005 series platform built for data-intensive storage environments, integrating PCIe Gen4 NVMe, SATA, and SAS storage with support for double-wide PCIe card expansion.
GPU Partner supplies the S2206 as a barebone platform for integration, configured to order with CPUs, memory, storage, and accelerators. Key platform capacities: 24 memory slots; 1300W power. Full specifications are listed below and in MSI's product portfolio.
MSI part numbers for this platform: S2206-02, S2206-04, S2206-06-10G. These differ mainly in drive-bay and RAID configuration; contact us to confirm the right SKU for your build.
- Form Factor
- 2U Rackmount
- Product Class
- Enterprise
- CPU Support
- AMD EPYC 9004/9005
- Sockets
- 2 (dual-socket)
- Max CPU TDP
- Up to 400W
- DIMM Slots
- 24x RDIMM
- Max Speed
- Up to 6400MT/s
- Option 1 — Bays
- 12x 3.5"/2.5"
- Option 1 — NVMe
- 4x U.2 PCIe 4.0
- Option 1 — SATA/SAS
- 8x SATA 3.0/SAS
- Option 2 — Bays
- 24x 2.5"
- Option 2 — NVMe
- 16x U.2 PCIe 4.0
- Option 2 — SATA/SAS
- 8x SATA 3.0/SAS
- M.2 Slots
- 2x 2280/22110
- M.2 Interface
- PCIe 3.0 x2 NVMe
- Double-Wide
- Up to 3x 400W DW
- Single-Wide
- Or up to 7x SW
- PCIe Cards Supported
- 2
- OCP Slot
- 1x OCP 3.0 PCIe 5.0
- Onboard LAN
- 2x GbE
- TPM
- TPM 2.0 module
- Wattage
- 1300W
Platform
Processor
Memory
Storage — Front Bays
Storage — Internal
Expansion Slots
Networking
Security (Optional)
Power Supply
